In the dynamic world of facility management, ensuring the smooth operation of electrical systems is paramount. Unexpected equipment failures not only disrupt operations but can also lead to significant repair costs. Facility managers are constantly seeking proactive measures to prevent these issues and maintain the reliability of their electrical infrastructure. One powerful tool in this arsenal is Electrical Infrared Imaging. In this article, we will delve into the intricacies of how these scans serve as a preventative maintenance strategy, ultimately saving facilities from the headaches and expenses associated with major equipment repair.
The Basics of Electrical Infrared Imaging
Electrical Infrared Imaging, also known as thermography, involves the use of specialized cameras to detect and visualize thermal patterns in electrical equipment. This non-invasive technique allows electricians and facility managers to identify potential issues before they escalate into major problems.
Spotting the Silent Threats
One of the primary advantages of Electrical Infrared Imaging is its ability to reveal hidden anomalies that are otherwise undetectable through traditional inspection methods. By capturing thermal images, professionals can identify areas of excessive heat, indicating potential electrical problems such as loose connections, overloaded circuits, or faulty components.
The Ripple Effect of Equipment Failure
Equipment failure in a facility can have a cascading effect, leading to downtime, loss of productivity, and, most significantly, injuries to personnel. Electrical systems are the lifeblood of any facility, and when critical components malfunction, the consequences can be severe.
Proactive Maintenance vs. Reactive Repairs
The traditional approach to maintenance involves fixing issues as they arise—a reactive strategy. However, this approach often results in higher costs and more extensive downtime. Electrical Infrared Imaging enables a shift towards proactive maintenance. By identifying potential problems before they manifest, facilities can schedule targeted repairs during planned maintenance windows, minimizing disruptions.
Key Benefits of Electrical Infrared Imaging Scans
Early Detection of Faults
Electrical Infrared Imaging allows for the early identification of faults in electrical equipment. Whether it's a loose connection or an overloaded circuit, catching these issues in their infancy prevents them from evolving into major, costly problems.
Increased Equipment Lifespan
Regular infrared inspections contribute to the prolonged lifespan of electrical equipment. By addressing minor issues promptly, the overall wear and tear on the equipment are reduced, leading to increased longevity and efficiency.
Enhanced Safety Measures
Safety is paramount in any facility. Identifying potential electrical hazards through infrared imaging ensures that corrective actions can be taken promptly, mitigating the risk of accidents and injuries.
Implementation in Facility Management
Creating a Comprehensive Inspection Schedule
To fully harness the benefits of Electrical Infrared Imaging, facility managers should establish a comprehensive inspection schedule. Regular scans, conducted by qualified electrical workers, should cover all critical electrical components, including switchgear, distribution panels, motor control centers and any other equipment deemed high priority.
Investing in Training and Technology
Ensuring that the personnel responsible for conducting infrared inspections are well-trained is essential. Additionally, staying abreast of technological advancements in thermal imaging equipment is crucial for maintaining the effectiveness of the preventative maintenance program.
The Proactive use of Electrical Infrared Imaging Scans
In the realm of facility management, the proactive use of Electrical Infrared Imaging Scans emerges as a game-changer. By preventing major equipment repairs through early detection of faults, facilities can not only save on repair costs but also enhance the overall reliability and safety of their electrical systems. As the old adage goes, "An ounce of prevention is worth a pound of cure," and in the electrical maintenance landscape, these scans embody that wisdom. Integrating Electrical Infrared Imaging into a comprehensive preventative maintenance strategy is not just a cost-effective choice; it's a strategic investment in the resilience, efficiency and safety of a facility's electrical infrastructure.
Facilities that house large, expensive machinery rely heavily on their electrical systems. These systems serve as the nerve center, powering essential operations. However, with great power comes great responsibility, as the complexity and criticality of electrical installations in such facilities demand meticulous maintenance and monitoring. In this article, we will delve into the paramount importance of electrical infrared imaging scans in ensuring the smooth and safe functioning of your facility.
Understanding the Electrical Backbone of Facilities
Electrical Systems as the Nervous System of Facilities
Think of the electrical systems in your facility as the nervous system of the human body. They transmit vital information, control processes, and keep everything running smoothly. Any disturbance or malfunction in this system can have far-reaching consequences.
The Complexity and Criticality of Electrical Installations
Facilities with large machinery often have intricate electrical installations. These systems are designed for high loads and efficiency but are equally susceptible to wear and tear. Their maintenance requires a deep understanding of their intricacies.
The Costly Consequences of Electrical Failures
Electrical failures in such facilities are not mere inconveniences; they are potential disasters waiting to happen. Beyond the immediate disruption, electrical failures can lead to extensive downtime, costly repairs, and even safety hazards for personnel.
Introducing Electrical Infrared Imaging Scans
How Infrared Imaging Scans Enhance Maintenance
Electrical infrared imaging scans, also known as thermography, are advanced tools that enhance the maintenance of electrical systems. They work by capturing thermal images that reveal temperature variations in equipment.
The Science Behind Infrared Thermography
The concept behind infrared thermography is rooted in the fact that electrical issues often manifest as temperature anomalies. By detecting these irregularities early, infrared imaging scans can pinpoint areas of concern, allowing for preventive action.
Why Electrical Systems Are Ideal for Infrared Scanning
Electrical systems are particularly well-suited for infrared scanning due to their characteristics. They generate heat, and any abnormal temperature rise can signal a potential problem. Infrared scans provide a non-invasive means of detecting these issues.
The Benefits of Electrical Infrared Imaging Scans
Detecting Problems Before They Escalate
One of the primary benefits of electrical infrared imaging scans is their ability to detect problems at an early stage. This early detection empowers facility owners and managers to address issues before they become critical.
Preventing Costly Downtime and Disruptions
Electrical failures often result in costly downtime, disrupted operations, and production losses. By identifying potential failures before they happen, infrared imaging scans can significantly reduce these financial burdens.
Extending the Lifespan of Electrical Equipment
Regular scans can help extend the lifespan of your machinery and electrical components. By addressing issues promptly, you reduce wear and tear, enhancing the longevity of your valuable assets.
Ensuring Safety for Facility Personnel
Safety is paramount in any facility. Electrical issues can pose serious safety hazards. Infrared imaging scans help identify these risks, allowing for timely mitigation measures to protect facility personnel.
Cost Comparisons: Reactive Maintenance vs. Proactive Scanning
Weighing the costs of regular scans against the expenses associated with major repairs paints a clear picture of the financial benefits of preventive maintenance.
Safety Improvements and Mitigation of Potential Risks
Beyond financial savings, the safety enhancements resulting from early issue detection are immeasurable. Protecting your employees and facility from harm is an ethical obligation and a legal requirement.
The Process of Conducting an Infrared Imaging Scan
Selecting a Qualified Thermographer
To ensure accurate and reliable results, it's essential to hire a qualified thermographer. These professionals are trained to conduct scans and interpret the data effectively.
Preparing for the Scanning Process
Before the scan, you should develop a list of the equipment to be inspected, a thought out route through your facility and if needed, a floor plan of your site. Safety measures should be in place to protect personnel during the process.
Data Collection and Analysis
The thermographer will collect data by capturing thermal images of your electrical systems. This data is then analyzed to identify temperature anomalies and potential issues.
Interpreting Scan Results and Making Informed Decisions
After the scan, you'll receive a detailed report outlining any identified problems and recommendations for corrective actions. This report is invaluable for planning maintenance and repairs.
DIY vs. Professional Scans: Making the Right Choice
The Pros and Cons of In-House Scans
While some may consider performing infrared scans in-house, there are notable drawbacks, including the need for specialized equipment and training. Weigh these factors against the benefits before deciding.
The Expertise and Value of Professional Thermographers
Professional thermographers bring expertise and experience to the table. Their ability to conduct thorough scans and provide accurate recommendations is unmatched.
How to Select the Right Infrared Scanning Service
When selecting a thermography service provider, consider their qualifications, experience, and reputation. A well-established provider is more likely to deliver reliable results.
Integrating Electrical Infrared Imaging Scans into Facility Management
Developing a Preventive Maintenance Plan
Infrared imaging scans should complement your existing maintenance plans. By incorporating them into your routine, you ensure ongoing protection and cost savings.
Determining the Frequency of Scans
Determining the optimal frequency for infrared imaging scans depends on factors such as equipment age, usage, and industry standards. Consult with your thermographer to establish a suitable schedule.
Cost Considerations and Long-Term ROI
While there is an initial cost associated with regular scans, it's crucial to consider the return on investment (ROI). The prevention of a single major failure can justify the expense.
Every facility that houses large, expensive machinery needs an electrical infrared imaging scan. These scans are not just a preventive measure; they are a proactive strategy to safeguard your facility's reliability, safety, and financial health. Don't wait until disaster strikes; take action today to ensure the smooth and secure functioning of your electrical systems.
Infrared imaging is an online electrical test that can detect failing components.
No test or service can predict the future.
Because it is an online test this can be extremely dangerous so appropriate PPE and training is an absolute must. Service entrance transformers and equipment are your biggest source for Arc BLAST.
An infrared imaging scan can detect loose connections, undersized components, overloaded components, overheated components and loose connections. Loose connections can be wire, terminals, bolt bus connections, or failing contacts inside of fusible, disconnect, or circuit breakers.
Accessibility And Infrared Inspections
Infrared inspections by themselves cannot give you a condition analysis on every component in your electrical system. Certain electrical components are not accessible or practically accessible for infrared inspections, for example overhead bus duct switches running through a production floor. And many times, not every circuit in your electrical system will be under load at the time of the inspection. For instance, if the infrared imaging technician is in front of the parking lot light panel at 2 o’clock in the afternoon he won’t be able to detect any hotspots because the circuits are not loaded at that moment. Infrared scanning should take place when circuits are under regular or heavy load. There are standby components to an electrical system that infrared testing simply is not applicable for for instance, if a trip solenoid in a circuit breaker has failed open, there will be no heat associated with that, and so the infrared inspector will not be flagged to report that condition.
It is important to bring an infrared inspector onto your site during normal production or operations. For instance, if half of your building is under construction, it may not be a good time for an infrared inspection.
Enclosed components must be opened. A direct line of sight must be given to the Thermographer to test and inspect components properly. For instance, a pad mount transformer needs to have its two front doors opened, providing a direct line of sight to the high-voltage cables and the low-voltage cables. A circuit breaker panel must have its dead front removed in order for there to be a direct line of sight to the wire terminations into the circuit breaker's load side, and the bus bar connections into the line side of the breaker. If you are going to inspect a switchgear, especially switchgear with multi K circuit breakers, most, if not all, of the metal covers must be removed for a thermographer to inspect all of the connections inside that switch with care.
If you want to cut down on the cost of the infrared inspecting process and or time associated with the project, a well trained certified Thermographer will be able to help you determine which equipment is most troublesome and needs adjustment. Equipment with very low levels of current draw typically do not benefit from thermal imaging. However, that does not exclude those items from having some sort of preventative maintenance done. For instance, if you don’t have the Thermographer inspect any of your lighting panels during your yearly shut down, be sure to include them for cleaning break or exercising and wire connection torque check.
Infrared Inspection Reporting

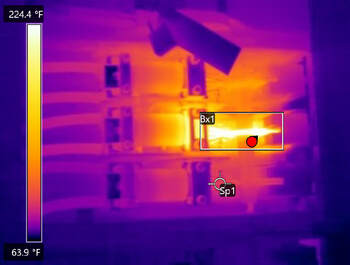

After the on-site inspection is done, an infrared inspection report it’s created with a detailed list of the items, inspected and report pages that have the hotspots noted.
Infrared inspection is typically a two-man job, one Thermographer, and one electrician. However, you can really speed things along with two electricians, one Thermographer, and a little forethought as to the route you will be taking through the building.
When a problem is detected, an image will be captured and typically national electrical measurements will be made like a current reading via an amp clamp.
The Main Goal of Thermal Imaging
It is important to keep in mind that the main goal of thermal imaging is to fix the items that are found with defects. As part of my infrared inspection process I capture part numbers or other relevant information on items that need to be replaced. Collecting defective part information saves you time by providing you the list of needed parts to make your repairs and you don't have to backtrack and figure out what you need.
The operation of thermal imaging equipment is not very difficult. However, if you do not have an in-depth understanding of the devices you’re looking at especially as it relates to safety you can be seriously injured, over report issues or under report problems.
It's important to use a certified infrared technician for your thermal imaging inspection.
